The Art of Soldering: A Beginner's Guide
Welcome to the ultimate beginner's guide to soldering! If you've ever wanted to repair electronics, build your own gadgets, or dive into the world of custom circuits, you're in the right place. Soldering might seem like a complex skill reserved for seasoned engineers, but it's surprisingly easy to learn. This guide will walk you through the essential tools, a step-by-step process, and crucial tips to help you create clean, strong, and reliable solder joints from your very first try.
What is Soldering?
In simple terms, soldering is a process used to join two or more electronic components together by melting a filler metal, known as solder, between them. Think of it as a conductive glue for electronics. Unlike welding, which melts the base components, soldering uses a lower temperature to melt only the solder, creating a strong electrical and mechanical bond on the printed circuit board (PCB).

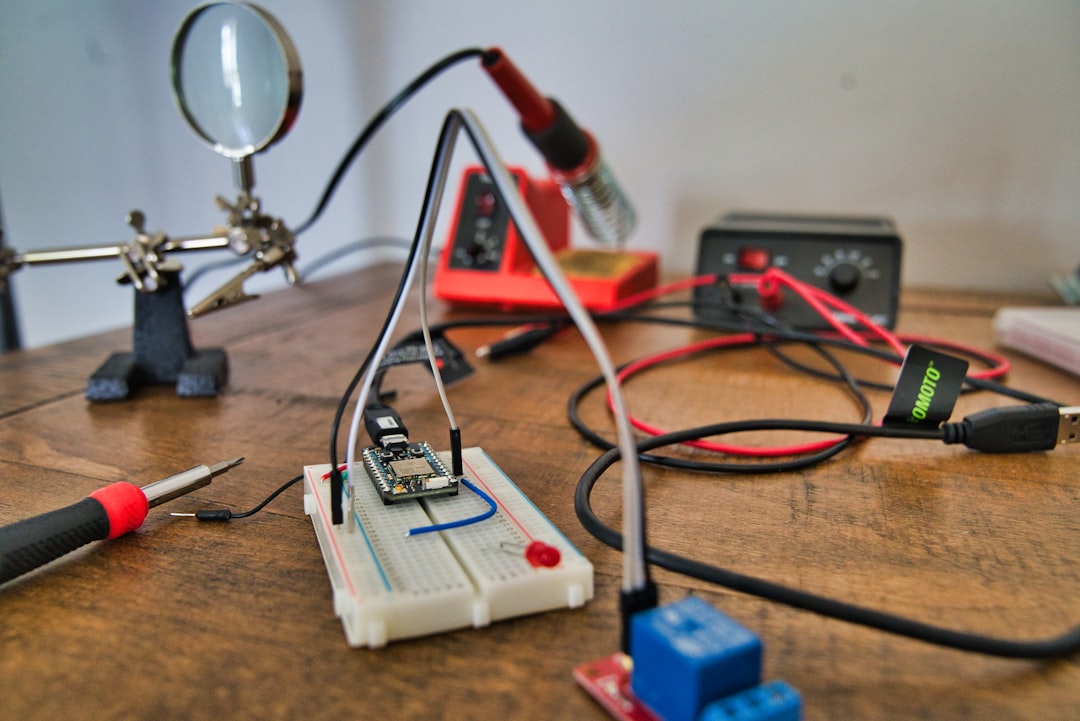

Your Essential Soldering Toolkit
Getting started doesn't require a massive investment, but having the right tools is crucial for a smooth experience. Here’s a breakdown of the must-have items for any beginner's soldering station:
- Temperature-Controlled Soldering Iron: This is your most important tool. An iron with adjustable temperature control (like the popular Hakko FX-888D or a versatile smart iron like the Pinecil) gives you the precision needed to work on different components without damaging them.
- Solder Wire: For electronics work, a thin rosin-core solder is ideal. A diameter of 0.6mm to 0.8mm is perfect for beginners. If you can, start with 63/37 leaded solder, as it's more forgiving. If you choose lead-free solder, be aware that it requires higher temperatures and is a bit trickier to work with.
- Soldering Iron Tip Cleaner: A clean tip is a happy tip! A brass wire sponge is far superior to a wet sponge because it doesn't cause thermal shock to the iron tip, which extends its lifespan.
- Flux Pen: While your solder has a flux core, adding a little extra flux from a pen can make a world of difference. Flux is a chemical cleaning agent that removes oxidation and helps the molten solder flow smoothly over the joint, ensuring a better connection.
- Helping Hands or PCB Holder: A stable work surface is non-negotiable. A "helping hands" tool with alligator clips or a dedicated PCB vise will hold your board and components securely, freeing up your hands to manage the iron and solder.
How to Solder: A Step-by-Step Guide
The secret to a perfect solder joint is simple: heat the component and the pad, not the solder itself. Let's break it down.
- Prepare Your Iron: Turn on your iron and set it to the appropriate temperature (around 320-360°C or 600-680°F is a good starting point for leaded solder). Once hot, clean the tip on your brass sponge and apply a tiny amount of solder directly to it. This is called "tinning" and it helps with heat transfer.
- Position the Iron: Gently touch the iron tip to the point where the component lead and the copper pad on the circuit board meet. Ensure you are making contact with both surfaces simultaneously for even heating.
- Heat the Joint: Hold the iron in place for 1-2 seconds. This is all it takes to bring the component and the pad up to temperature.
- Apply the Solder: Touch the end of your solder wire to the opposite side of the joint—away from the iron tip. The heat from the component and pad will melt the solder, not the iron. It should flow quickly and smoothly, enveloping the joint.
- Form the Perfect Joint: Apply just enough solder to form a neat, volcano-shaped or concave cone. A good joint will look shiny and uniform.
- Remove Solder, Then Iron: First, pull away the solder wire. Then, smoothly remove the soldering iron. The entire process should take no more than 4-5 seconds to prevent overheating the component.
Practice Makes Perfect
The best way to build confidence is by practicing on an inexpensive electronics kit or a scrap PCB. Learning how to solder is a gateway skill. It opens up a universe of possibilities, from repairing everyday gadgets and building custom mechanical keyboards to designing and creating your own electronic inventions from scratch. Happy soldering
